Bronze Clevis Pins
Bronze Clevis Pins
Couldn't load pickup availability

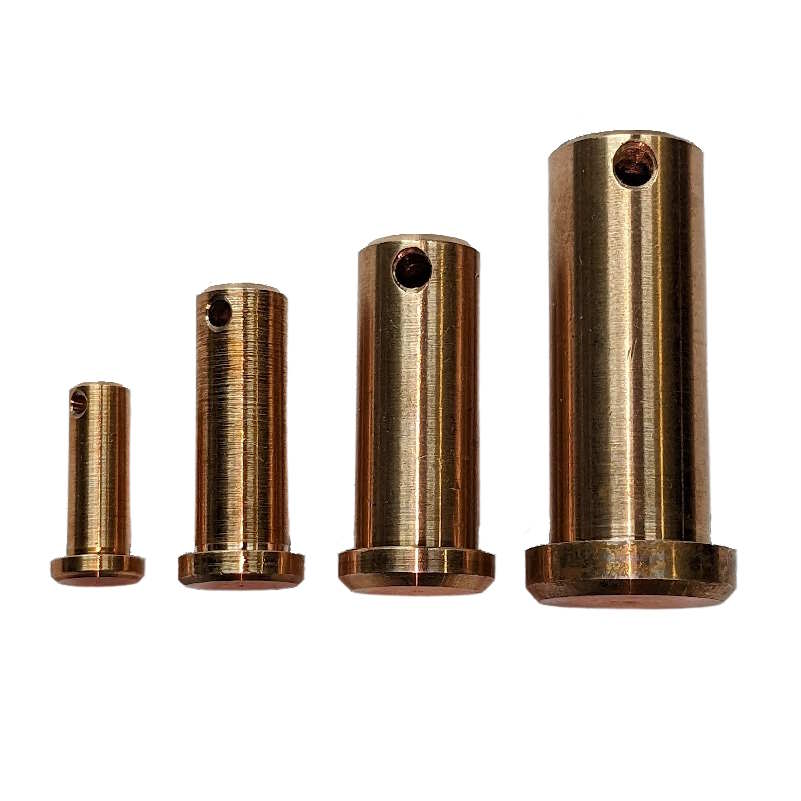

Our Bronze Clevis Pins are reliable, strong, durable, and precision CNC turned from C51900 Phosphor Bronze material. Their superior strength provides maximum performance and protection. Perfect for any long-term application. The are excellent on all kinds of yacht rigging and pair well with your bronze turnbuckles. Scroll down for our clevis pin size chart to find the size you need.
Why Phosphor Bronze and not the Typical Silicon Bronze?
We chose to have our clevis pins machined from C51900 Phosphor Bronze instead of the typical C65500 or C65100 silicon bronze that most of our fasteners are made of. Why? Superior tensile strength. While silicon bronze is better for corrosion protection below the water line, phosphor bronze offers a higher tensile strength for rigging applications where clevis pins are normally used. Phosphor bronze will still offer more than ample corrosion protection above the waterline and will last many lifetimes while providing a higher strength pin.
Don't forget bronze cotter pins to keep your clevis pins secure!
Bronze Clevis Pin Size Chart:
| Diameter (D) | Working Length (WL) | Stud Length (SL) | Head Diameter (HD) |
Cotter Pin Diameter Required |
| <1/4" (0.243") | 9/16" (0.562") | ~45/64" (0.705) | ~3/8" (1.368") | 1/16" |
| <1/4" (0.243") | 5/8" (0.625") | ~25/32 (0.775") | ~3/8" (1.368") | 1/16" |
| <1/4" (0.243") | 7/8" (0.875") | ~1-1/32" (1.030") | ~3/8" (1.368") | 1/16" |
| <1/4" (0.243") | 1-1/4" (1.250") | ~1-25/64" (1.395") | ~3/8" (1.368") | 1/16" |
| <5/16" (0.307") | 3/4" (0.750") | ~61/64" (0.947") | ~7/16" (1.430") | 3/32" |
| <5/16" (0.307") | 7/8" (0.875") | ~1-5/64" (1.070") | ~7/16" (1.430") | 3/32" |
| <3/8" (0.368") | 7/8" (0.875") | ~1-5/64" (1.085") | 1/2" (0.500") | 3/32" |
| <3/8" (0.368") | 1-1/4" (1.250") | ~1-7/16" (1.437") | 1/2" (0.500") | 3/32" |
| <1/2" (0.493") |
1" (1.000") |
~1-17/64" (1.265") | ~5/8" (0.618") | 1/8" |
| <1/2" (0.493") | 1-1/8" (1.125") | ~1-23/64" (1.357") | ~5/8" (0.618") | 1/8" |
| <5/8" (0.618") | 1-1/4" (1.250") |
~1-1/2" (1.493") |
~13/64" (0.618") | 1/8" |
| <5/8" (0.618") | 1-3/8" (1.375") | ~1-5/8" (1.625") | ~13/64" (0.618") | 1/8" |
| <7/8" (0.864") | 1-5/8" (1.625") | ~1-15/16" (1.938") | ~1" (1.025") | 5/32" |
